Palm fruit oil press machine /palm oil pressing machine

The introduction of palm fruit oil press machine /palm oil pressing machine:

Palm fruit oil press machine to produce pure and assured edible oil. The whole cooking oil expelling process is visible and needs only about 5-7 minutes; Palm fruit oil expeller is quite suitable to individual households and small oil mills in the countryside due to its little room occupancy and high pressingspeed.It is available to palm fruit,sesame,walnut kernels, pumpkin seeds, kiwi seeds,tea seeds and almonds,etc.


Palm fruit oil press machine

The advantage of palm fruit oil press machine
1.High oil yield
2.Physical squeeze--It is cold press not destroy seeds organic composition
3.Get pure oil, less impurity in the oil.
4.Automatic, high effiency.---from put seed in the machine to get oil just need 7-8 minutes. One person can operate 3-4 sets of machine.

Other information:
Skype:sophia.zang1
Mobile:+86 158 3826 3507
Phone:+86-371-5677 1823
Website:www.palmoilextractionmachine.com
E-mail: palmoil@doingmachinery.com  chat online

Palm oil mill process/ palm oil processing machine

Palm oil mill process introduction:
1.Weighing of palm oil mill process.Palm fruit into the factory after truck weighing,ease of production costing and after the settlement.
2.Loading ramp of palm oil mill process.FFB after a ramp sieved to remove impurities into the transport machinery delivery to sterilization tank.
3.Sterilization of palm oil mill process.The use of high temperatures to cook soft fruit bunches and sterilization (145 ℃ ,90-120 minutes), easy to separate fruit bunches fruit, soft fruit, increasing the humidity of the fruit.
4.Threshing of palm oil mill process.FFB has softened in sterilization process.After machine and screening beating off the fruit,palm fruit and empty fruit bunches (EFB) separation.
5.Empty fruit bunches.After delivery hoarding,EFB shipped orchard as fertilizer or fuel,it can also be used for other purposes.
6.Crushing of palm oil mill process.Fruit is broken through mash tank mixing and extrusion.
7.Pressing of palm oil mill process.The crushed fruit screw extrusion leaching by the press.

Palm oil mill process

Other information:
Skype:sophia.zang1
Mobile:+86 158 3826 3507
Phone:+86-371-5677 1823
Website:www.palmoilextractionmachine.com
E-mail: palmoil@doingmachinery.com

chat online

What is palm oil?

Red palm oil

What is palm oil?
Palm oil is the most widely-used vegetable oil in the world. Palm fruit oil, generally known as palm oil, is produced from the pulp of the fruit of the oil palm tree (Elaeis Guineensis). This tropical fruit is reddish in colour because of a high beta-carotene content. The fruit is about the size of a large olive. The fruit has a single seed or kernel, which is used to produce palm kernel oil. Each palm fruit contains about 30-35 per cent oil. Palm fruit oil and palm kernel oil differ significantly in their fatty acid composition, but have the same botanical origin.

Provided by nature

The oil palm tree grows in regions around the equator. It is a tropical tree with leaves about 5 metres long. Originally found in West africa, the oil palm tree is now mostly cultivated in Indonesia and Malaysia, the world’s largest palm oil-producing nations.
From a tropical climate

Nature plays a big part in the palm oil story. What the tree loves above all, is sun and humidity. It thrives on plenty of sunshine, temperatures ranging between 24 and 32 degrees centigrade and rainfall evenly distributed throughout the year. Therefore, the most suitable areas for cultivation are located between ten degrees north and south from the equator. Apart from Indonesia and Malaysia there is an increase in palm oil production in other parts of the world including South and Central America, Thailand and Western Africa.
Did you know?
    Palm oil and palm kernel oil represent 38 per cent of the global vegetable oil production.
    62 million tons of palm oil is produced annually.
    One palm tree produces 40 kilogrammes of palm oil every year.
    One hectare of oil palm trees produce on average 3.8 tons of oil each year.
    Oil palm accounts for 7 per cent of all the cultivated land for vegetable oils globally, but has the highest output, producing 38 per cent of all oils and fats.
    Indonesia and Malaysia supply 85 per cent of the palm oil used globally.
    In Indonesia and Malaysia together, approximately 4.5 million people earn a living from palm oil.
    The use of palm oil in human nutrition dates back 10,000 years.

Other information:
Skype:sophia.zang1
Mobile:+86 158 3826 3507
Phone:+86-371-5677 1823
Website:www.palmoilextractionmachine.com
E-mail: palmoil@doingmachinery.com  chat online

Palm kernel oil refining machine /cooking oil refining process

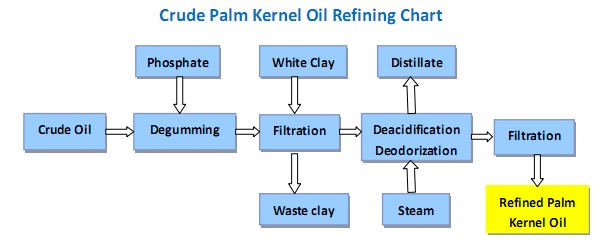

Palm kernel oil refining process

Palm kernel oil refining machine /cooking oil refining process introduction:
Palm kernel oil refining processing line adopts advanced and scientific physical refining and totally stainless steel tank refining. Palm kernel oil is non-drying oil with low gum content, which is suitable for physical refinery. Fatty acid composes of 45%-51% lauric acid and 13%-25% cardamom acid. Palm kernel oil contains soap grade and food grade.

Palm kernel oil refining mahcine

Simple introduction of palm kernel oil refining:

● Decolorization. Whit clay makes continuously decolorization of crude palm kernel oil, and enters into filter for filtration.

● No need of degumming. Physical oil refining is applicable because of low gum content inside palm kernel oil.
● High vacuum deacidification. Gas supported heat-conducting oil boiler and packed tower make high vacuum deacidification from crude palm kernel oil.

● Fat acid Condensing recovery. Stainless steel recycled water is adopted to make direct condensing recovery of fat acid.

Other information:
Skype:sophia.zang1
Mobile:+86 158 3826 3507
Phone:+86-371-5677 1823
Website:www.palmoilextractionmachine.com
E-mail: palmoil@doingmachinery.com

chat online

Small capacity palm oil production process machine

Small capacity palm oil production process machine:
Due to the planting structure influence, many Africa customer requires small capacity palm oil production process machine, while, in the international market, few company can do this small capacity palm oil production process machines, to solve this problem and help Africa customers, Doing company invented the small capacity palm oil production process machine recently.
Doing company small capacity palm oil production process machine has below capacities: 0.5t/h, 1t/h, and 2t/h.

Small capacity palm oil production process machine

For the 0.5t/h palm oil production process, the main process is:
FFB---Threshing---Sterilizing---Pressing---Filtration---CPO
For the 1t/h, 2t/h palm oil production process, it suits for the below steps:
FFB--- Sterilizing ---Threshing ---Pressing---Filtration---CPO

The difference of these two ways is the 0.5t/h palm oil production process thresh first, and then sterilize, and 1t/h, 2t/h palm oil production process will sterilize first and then thresh.
These two ways function is same, for different capacity, the steps is a little different. If you still have any questions about our mini capacity palm oil production process machine, just call us.




Other information:
Skype:sophia.zang1
Mobile:+86 158 3826 3507
Phone:+86-371-5677 1823
Website:www.palmoilextractionmachine.com
E-mail: palmoil@doingmachinery.com
chat online

Palm fruit oil pressing production line /palm oil making mahcine

palm oil pressing machine production line

Henan Doing Company designs palm oil pressing machine production line to achieve crude palm oil from palm fruits and bunches. This type of self-sufficient palm oil making process adopts mature and reasonable design, assuring high capacity of crude palm oil, low energy consumption, low cost and low environmental pollution.

Palm fruit oil pressing production line introduction:

The Fresh Fruit Bunches(FFB) is available after 3 yeas plantation. Palm fruits are sent into crude palm oil processing plant with following production process:
●  Weighing. Transport palm fruit to factory after truck weighing so as to make prompt settlement and production cost subsequent.
●  Unloading fruit. Fresh Fruit Bunches (FFB) are sent to fermentation tank through transportation machinery after sieving and impurities removing. The time from picking up to fermentation should be less than 24 hours, or the free fatty acid(FFA) will rise, which will not be conductive for further processing and production of palm oil from palm oil making machine.
●  Fermentation. FFB will pass high pressure and high temperature sterilization after entering fermentation tank. It will soft and make sterilization for FFB.
●  Threshing. Threshing machine will separate both palm fruits and empty fruit bunches(EFB) after FFB soften duirng fermentation.
●  Empty fruit bunches (EFB). EFB are sent to send to garden as fertilizer, fuel or other purposes after conveying and hoarding.
●  Meshing. Mixing tank will mesh and crush palm fruit until broken after fruit threshing.
●  Pressing. The crushed palm fruit will be leaching out from screw extrusion of palm oil pressing machine.

Features of palm oil making machines:

● Low environment pollution palm oil milling production line. This palm fruit oil machine adopts process of sterilization, threshing, digesting, pressing, clarification, purification, drying, depericarper, crushing and final pressing. This mature design fulfills the lowest fuel consumption, steam driving, and self-sufficient energy supplying.

● Quality and performance reliable and stable oil making process. The design, manufacturing, and installation are all CE and ISO quality approval. Henan Doing Company owns rich experience in palm oil making machine designs more than 60 years and gets national patent certificates of multiple oil milling production lines.

Other information:
Skype:sophia.zang1
Mobile:+86 158 3826 3507
Phone:+86-371-5677 1823
Website:www.palmoilextractionmachine.com
E-mail: palmoil@doingmachinery.com  chat online

Palm Oil Processing machine/palm oil production line

Palm Oil Processing machine/palm oil production line introduction:
Palm oil processing gathering palm oil making, palm oil refining, and palm oil fractionation processing lines, ensures high efficiency and high oil yield of edible palm oil.

Palm oil processing mahcine

● Palm oil pressing machine provides high oil yield crude palm oil making from palm fruit and palm kernel.
● Palm oil refining machine enables high quality edible vegetable oil refining processing from crude palm oil efficiently.

Palm oil refining process machine

● Palm oil fractionation technology divides palm oil into liquid and solid oil by different welding points and different solution of various triglycerides composing oil.

Other information:
Skype:sophia.zang1
Mobile:+86 158 3826 3507
Phone:+86-371-5677 1823
Website:www.palmoilextractionmachine.com
E-mail: palmoil@doingmachinery.com  chat online

Palm oil mill process/palm oil processing machine for sale



Palm oil mill process

Palm oil mill process/palm oil processing machine introduction:
1.Palm oil mill process of bunch reception: as palm fruit unloading, cleaning, storage platform during palm oil mill processing, all hydraulic segmented discharge.
2.Palm oil mill process of sterilization: the use of high temperature to cook soft fruit bunches and sterilization, easy to separate fruit bunches, soft fruit, increasing the humidity of the fruit, it is easy to take the oil but also to make verification easier separation of the core-shell, preventing enzymatic decomposition, to avoid elevated levels of free fatty acids.
3.Palm oil mill process of threshing: strong vibrations through the fruit from fruit bunches separated.
4.Mashing. Mixing tank will mash and crush palm fruit until broken after fruit threshing.

Palm oil pressing machine

5.Palm oil mil process of pressing: There is also the steam heater in masher. The purpose of mashing is to separate the pulp and nut and crush the palm pulp. At the same time, the steam is used to cook the palm fruit and broke the cell of pulp. Because of cooking, sterilizing, threshing and mashing made the pulp soft and damage pulp cell structure, the palm pulp becomes soft and cell is broken. Then it is sent to continuous screw press. After pressing, oil palm fruit is divided into two parts: the mixture of oil, water and solid impurities, and the press cake (fiber and nut).The pulp stone separation obtained CPO and stone, press machine adopts the double screw helix continuous discharge and hydraulic, greatly improving production efficiency.

Other information:
Skype:sophia.zang1
Mobile:+86 158 3826 3507
Phone:+86-371-5677 1823
Website:www.palmoilextractionmachine.com
E-mail: palmoil@doingmachinery.com
chat online

High quality palm oil production process /palm fruit oil making machine

High quality palm oil production process /palm fruit oil making machine introduction:

Palm oil production process

1.Weighing.Palm fruit into the factory after truck weighing,ease of production costing and after the settlement.
2.Loading ramp.FFB after a ramp sieved to remove impurities into the transport machinery delivery to sterilization tank.
3.Sterilization.The use of high temperatures to cook soft fruit bunches and sterilization (145 ℃ ,90-120 minutes), easy to separate fruit bunches fruit, soft fruit, increasing the humidity of the fruit.
4.Threshing.FFB has softened in sterilization process.After machine and screening beating off the fruit,palm fruit and empty fruit bunches (EFB) separation.
5.Empty fruit bunches.After delivery hoarding,EFB shipped orchard as fertilizer or fuel,it can also be used for other purposes.
6.Crushing.Fruit is broken through mash tank mixing and extrusion.
7.Pressing.The crushed fruit screw extrusion leaching by the press.
