Automatic palm oil press machine-Hydraulic palm oil screw palm oil press machine for sale

Automatic palm oil press machine introduction:

During the whole palm oil processing process, the automatic palm oil press machine plays a very important role. Without the palm oil press machine, we couldn't get the final crude palm oil, refined palm oil.

The automatic palm oil press machine has its own features and markets. It is suitable for medium-small scale oil factory and private user, as well as the family workshop. Among all palm oil machines, the automatic palm oil press machine is most widely used equipment. It can be used alone or togetser with other palm oil machines. After pressed , the oil residual in the mixture of palm nuts and fibers is less than 7%.

Automatic palm oil press machine photos

Working principle of automatic palm oil press machine:

When operating the automatic palm oil press machine, put the sterilized, mashed palm fruit into feed hopper of palm oil press machine, pressing by physical squeeze , then get red palm oil and the mixture of fibers and palm nuts.

Palm oil mill plant adopts screw press technology can greatly reduce the human cost and ensure maximized productivity.

Automatic palm oil press machine gif

Technical parameters of automatic palm oil press machine:

Product name :	doublescrewpalmoilpress machine
Power:	7.5KW
Screwdiameter:	146mm
Screwdistance:	127-135mm
Length*Width*Height	2500*1000*550mm
ReferenceWeight:	1800kg
Oillossindryfiber:	6%-8%
Nutbreakage:	8%-10%
Powerofhydraulicunit：	2.2KW

The above parameters are the parameters of 1tph double screw palm oil press machine, for reference only. Besides that, we also supply 5tph, 10tph and 15tph double screw palm oil press machine, if you need, welcome to contact us.

1tph, 5tph, 10tph and 15tph double screw palm oil press machine photo

Henan Glory Company is committed to the research, design, production and sales of palm oil processing machine, we can not only supply the whole set palm oil processing plant, but also supply the single palm oil machines, such as palm fruit sterilizer machine, palm fruit thresher, screw palm oil press machine, and so on. If you are intersted in palm oil processing plant, and want to start palm oil processing business, weclome to contact us, our engineer will give you a professional suggestions according to your demands.

 Contact information:

◆http://www.palmoilextractionmachine.com
◆http://www.palmoilprocessingmachine.com
☏whatsApp/wechat: +86 13526627860
E-mail: palmoil@doingmachinery.com

How to choose suitable palm kernel oil processing machine? What factors should be paid when buying palm kermel oil processing machine?

In order to further develop the value of palm kernel oil processing business and enhance its market competitiveness, people usually make money by buying palm kernel oil processing machine to produce palm kernel oil. But how to buy suitable palm kernel oil processing machine? This is a question that needs serious consideration. To help customers buy the ideal palm kernel oil processing machine, Henan Glory company specially made the following summary, hoping helpful to most people.

There are mainly three factors that should be paid attention to when buying palm kernel oil processing machine, they are: production capacity, processing technology, machine supplier. Next, let's analyse them one by one.

First, pay attention to production capacity. At present, there are several schemes for customers to choose in the market. Each scheme suitable for different processing capacity.

Small scale palm kernel oil processing machine

Scheme 1: Single palm kernel oil equipment (500kg/h small scale palm kernel oil expeller); Its normal processing ability is 1-5tpd.

Scheme 2: Simple type palm kernel oil press production line(roastor+ palm kernel oil expeller+plate filter). Its normal processing ability is also 1-10tpd, but the resulting crude oil is of higher quality.

Scheme 3: Small scale palm kernel oil press production line(crusher+roastor+ palm kernel oil expeller+plate filter). Its normal processing ability can reach 5-20tpd. It is the choice of most small scale palm kenel oil mill.

Scheme 4: Large scale palm kernl oil press production line( The specific device configuration depends on customer requirements, it needs to confirm with professional engineers).

In conclusion, customers can select it according to their own palm kernel oil processing requirements and investments.

Second, pay attention to processing technology. There are mainly two kinds of processing technologies for extracting palm kernel oil, one is to use professional palm kernel oil expeller for pressing. The other is to use the normal cooking oil expeller to replace the professional palm kernel oil expeller for pressing. If the customer accidentally chooses to purchase a conventional oil expeller to produce palm kernel oil, I can tell you that you will not be able to extract palm kernel oil and the equipment is very easy to wear. The specific reason is that the conventional oil expeller is mainly designed to press soybean, peanut, rapeseed, sunflower seeds and so on. It is more consistent with the characteristics of ordinary oilseeds, but the palm kernel is more hard, its characteristic is different with ordinary oilseeds.

Palm kernel oil expeller machine and conventional oil expeller

Here, Henan Glory Company suggest that you'd better choose some more suppliers for comparison, and then incidentally let them give you some palm kernel oil expeller's test running video and user feedback video for your reference.

Third, pay attention to machine supplier. When purchasing palm kernel oil processing machine, you must pay attention to whether the machine supplier is a direct manufacturer. Generally speaking, a reliable direct machine manufacturers have rich palm kernel oil mill plant project experience, and can provide you with multiple types of machine options at a more favorable price and more complete after-sales service.

Palm kernel oil processing machine manufacturer

Henan Glory Company has been focusing on the production of palm kernel oil processing equipment for many years, we can customize different types of high quality palm kernel oil processing machine according to customer needs. If you are looking for suitable palm kernel oil processing machine, Henan Glory will be a nice choice.

Related reading:

Large medium and small scale palm kernel oil processing machine for sale

Complete set of palm oil processing machine for sale

Simple type palm fruit thresher machine and drum type palm fruit thresher machine

Palm fruit thresher machine is a kind of machine used to separate palm fruit from fresh palm fruit bunches ( FFB ). After threshing process,  we will get palm fruit and empty palm fruit bunches ( EFB ). Then, the separated palm fruit will be transported to the palm oil pressing station to be squeezed. The empty palm fruit bunches will be transported to the boiler station to be used as biomass fuel  biomass fuel, or be transported to the palm plantation as a nice fertilizer.

As a professional manufacturer of palm oil processing machine, we can supply two different models palm fruit machine to meet the production needs of different customers, the one is simple type palm fruit thresher machine, the other is drum type palm fruit thresher machine. Here, Henan Glory Oils & Fats Engineering Co., Ltd will take you learn about the differences of different types of palm fruit thresher machine.

Types 1: Simple type palm fruit thresher machine:



Palm fruit thresher machine

It is suitable for small processing capacity, such as, if you want to process 1 tons FFB per hour or 0.5 tons FFB per hour, Henan Glory Company suggests you buy the simple type palm fruit thresher machine.
Features of simple type palm fruit thresher machine are as follows:
1. Easy to install and use, easy to operate;
2. The design is scientific and the structure is reasonable；
3. The investment cost is low and most people can afford it;
4. The material is excellent and the service life is long;

Types2: Drum type palm fruit thresher machine:

Drum type palm fruit thresher machine

It is mainly suitable for big medium and small-sized palm oil press production line to process FFB. Drum type palm fruit thresher machine has a long horizontal drum inside. By rotating the drum, the palm fruit particles leak out from the drum through the sieve holes to be discharged. The EFB is finally discharged from the tail of the drum. The processing capacity of this drum type palm fruit thresher is 1 tons per hour to 15 tons per hour.
Features of drum type palm fruit thresher machine:
1. Greatly improve the efficiency of palm fruit separation from palm fruit bunches and reduce the labor cost;
2. Steel construction ensure the stable performance and long-term use;
3. It is easy to operate, clean and maintain;

Which type of palm fruit thresher machine do you like, simple type or drum type? Please tell me your detailed requirements, we can offer the suitable palm fruit thresher machine for you at factory price.

Related reading:

Small scale palm oil processing machine

Automatic palm oil press machine

 Contact information:

◆http://www.palmoilextractionmachine.com
◆http://www.palmoilprocessingmachine.com
☏whatsApp/wechat: +86 13526627860
E-mail: palmoil@doingmachinery.com

High quality red palm oil making machine , palm oil processing equioment for making palm oil

Henan Doing Machinery provides a range of palm oil making machines to extract oil from fresh fruit bunches of oil palm. The following is the typical palm oil manufacturing process which might be useful for new investors of palm oil production business.

Palm oil making machine

The manufacture of crude palm oil involves a series of processes starting with harvesting fresh fruit bunches from the plantations and ending with crude palm oil storage. Through sterilizing, threshing, digesting and expelling, crude palm oil will be pressed out in palm oil pressing machine (screw oil press). Each station of palm oil mill uses different methods and machines. After purifying and filtering, the  palm oil can be exported as a popular kind of healthy and edible oil. Next I will introduce the production and manufacturing process of palm oil:

Main Machinery for Making Palm Oil:
Sterilizer, Thresher, digester, screw palm oil press, nut/fiber separator and so on.

Palm oil production process flow chart

Palm Fruit Harvesting Process
The initial process in palm oil mill is reaping the palm fruit bunches.

Palm fruit sterilizing process
Through fruit reception system (left of the above photos), the palm fruit bunches will be transported to the next process - Sterilizing Station.

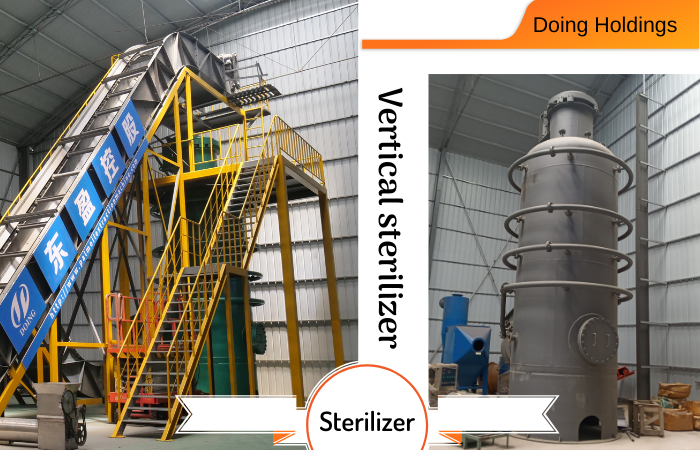

Palm fruit sterilizer machine

The sterilization process utilizes steam or water to sterilize the fresh palm fruits. This process likewise stops enzymatic responses that prompt oxidation and upsets the cells which are found in the mesocarp, so that to improve the oil extraction efficiency and final oil product quality.

Palm fruit threshing process
In the threshing process of palm oil mill plant. The fruitlets are separated from the whole bunches by use of stripper machine. Threshing is generally mechanical in large palm oil mill by use of thresher, which rotates or vibrates to remove the fruits from the bunch.

Palm fruit thresher machine

Palm fruit digesting process
Before extracting oil, the palm fruits need to be crushed in digester machines. To augment oil yield, the fruit pulp is also warmed in this process.


Palm oil pressing process
After palm fruit digesting process, The pulp is then pressed, which bursts the oil-containing cells, releasing the palm oil. During the palm oil pressing process, the screw palm oil press is the most commonly used palm oil making machine in both small and large scale palm oil manufacturing plant.

Screw palm oil press machine

Palm Oil Clarification process
The purpose of clarification in palm oil production process is to remove impurities. The final crude palm oil will be storage in bulk in a tank.

Palm kernel recovery process
After palm oil expelling, the solids parts discharged from the screw press is mixture of fiber and nuts. In palm kernel recovery plant, the nuts and fiber are separated by physical means. The nuts are sent to palm kernel crushing and solvent extraction plant to make palm kernel oil, while the fiber is used as biomass fuel in boiler on-site.

The above is the detailed production process of palm oil, if you want to get more information about palm oil processing machine, welcome to contact us!
